Hardware
Quick Links
End Fittings
Schematics (Click to enlarge)

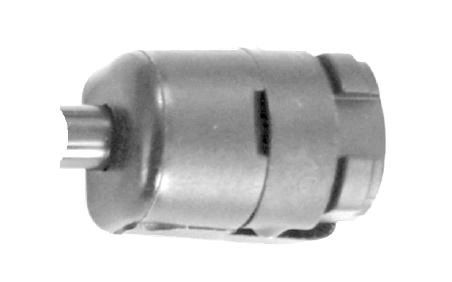

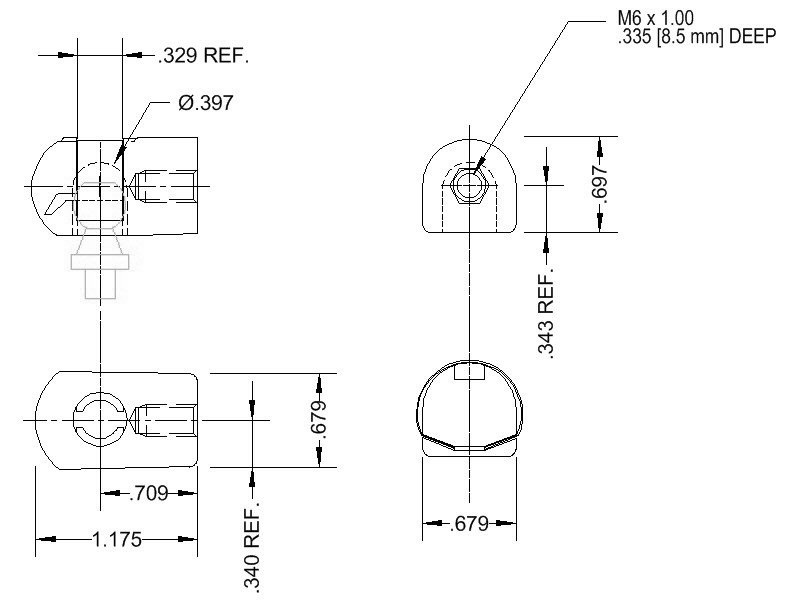

KEF-10-071-CR
For 10mm Ball Studs
Steel Nitrided Retaining Clip
Black Nylon Composite Cap
M6 X 1.00 Thread
Schematics (Click to enlarge)

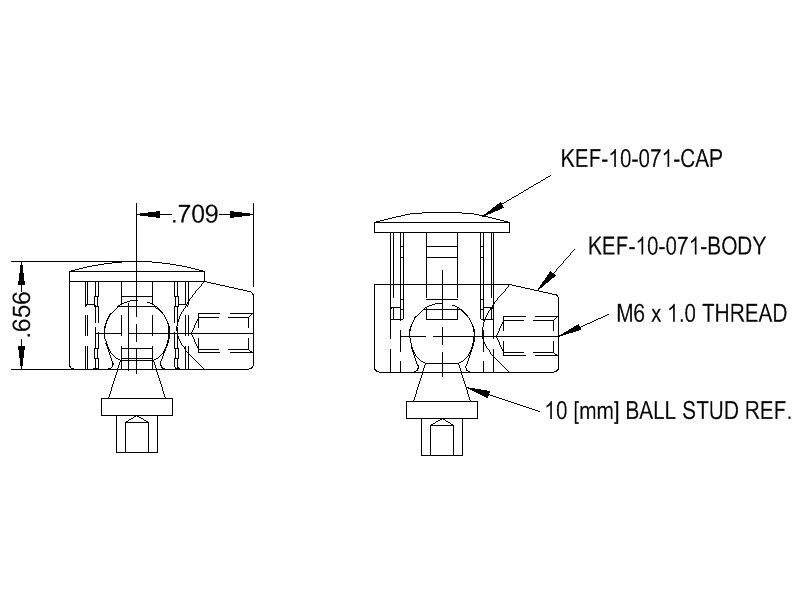

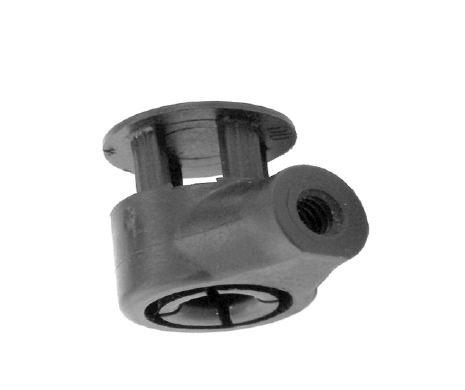

KEF-10-071-CC
For 10mm Ball Studs
Black Nylon Composite Body
Black Nylon Composite Cap
M6 X 1.00 Thread
Schematics (Click to enlarge)

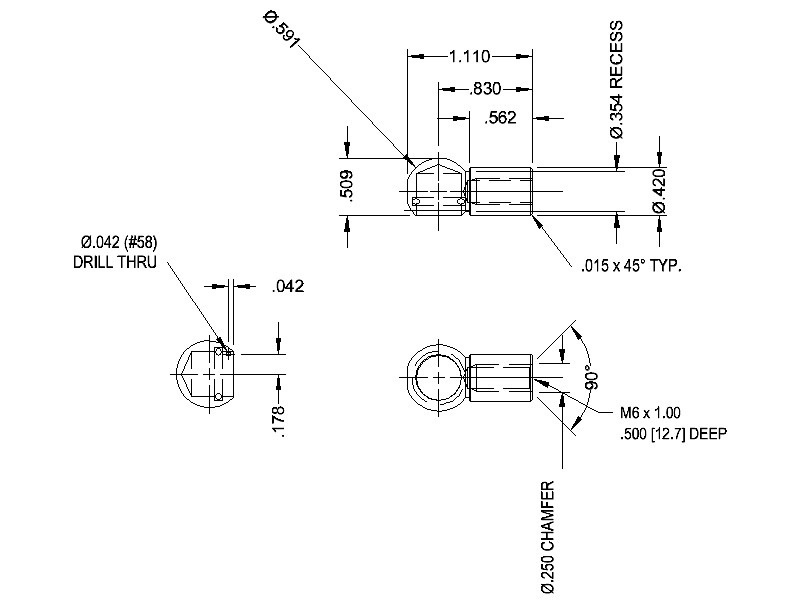

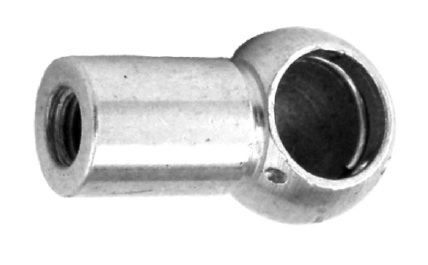

KEF-10-083-Z
Steel Zinc Plate - RoHS Compliant
KEF-10-083-P
Steel Black Nitride Finish
KEF-10-083-S
304 Stainless Steel - 500 Hour Salt Spray
For 10mm Ball Studs
M6 X 1.00 Thread
Schematics (Click to enlarge)

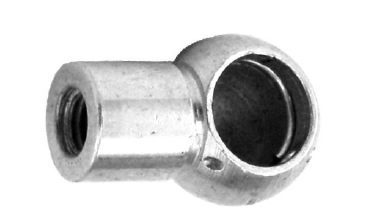

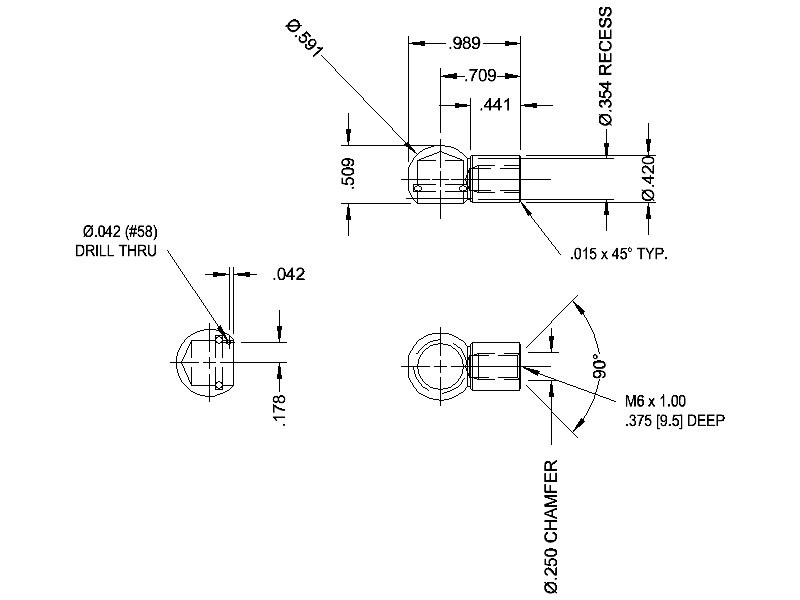

KEF-10-071-Z
Steel Zinc Plate - RoHS Compliant
KEF-10-071-P
Steel Black Nitride Finish
KEF-10-071-S
304 Stainless Steel - 500 Hour Salt Spray
For 10mm Ball Studs
M6 X 1.00 Thread
Schematics (Click to enlarge)

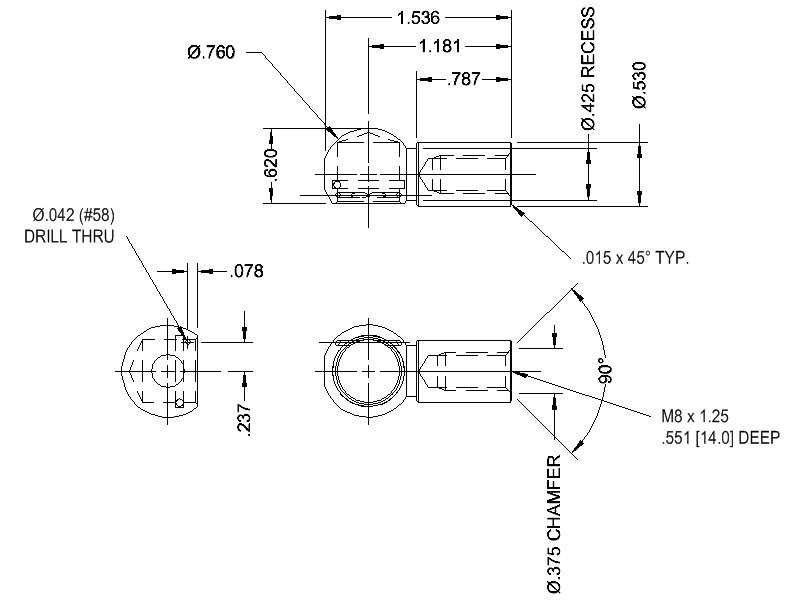

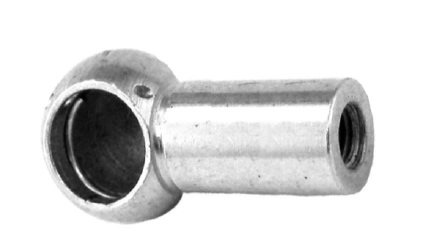

KEF-13-118-Z
Steel Zinc Plate - RoHS Compliant
KEF-13-118-P
Steel Black Nitride Finish
KEF-13-118-S
304 Stainless Steel - 500 Hour Salt Spray
For 10mm Ball Studs
M6 X 1.25 Thread
Safety Clips
Schematics (Click to enlarge)

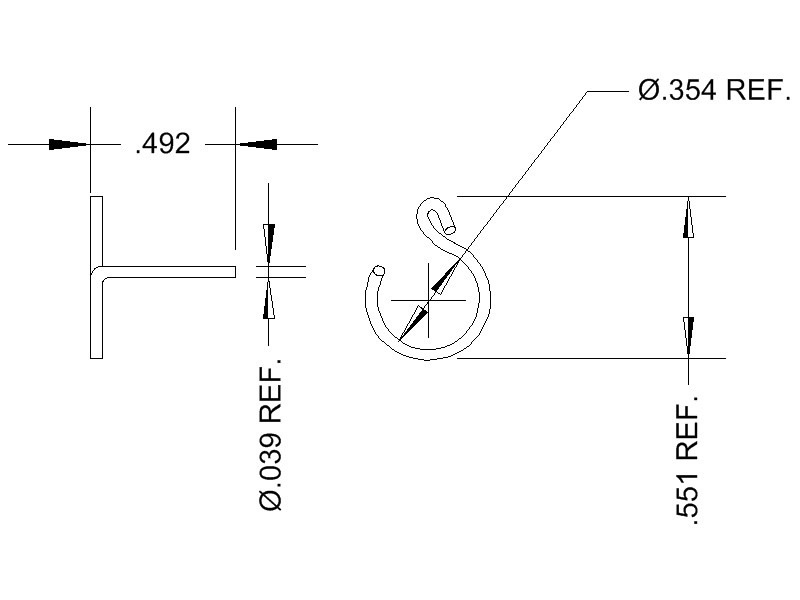

KSC-10-S
For 10mm Metal Socket End Fittings
304 Stainless Steel
Schematics (Click to enlarge)

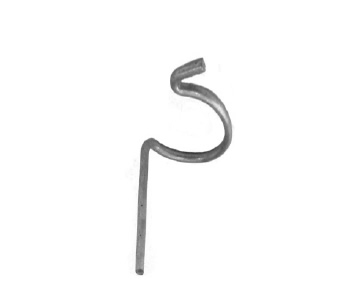

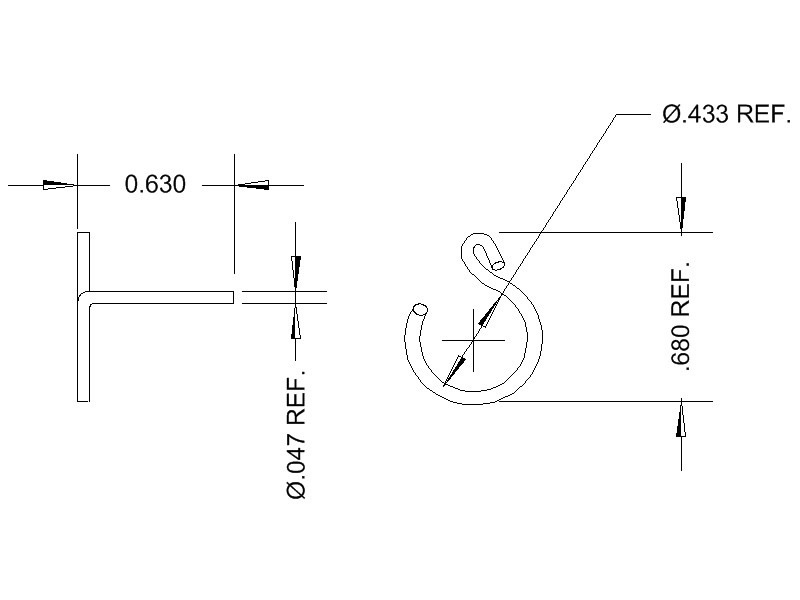

KSC-13-S
For 13mm Metal Socket End Fittings
304 Stainless Steel
Brackets
Schematics (Click to enlarge)

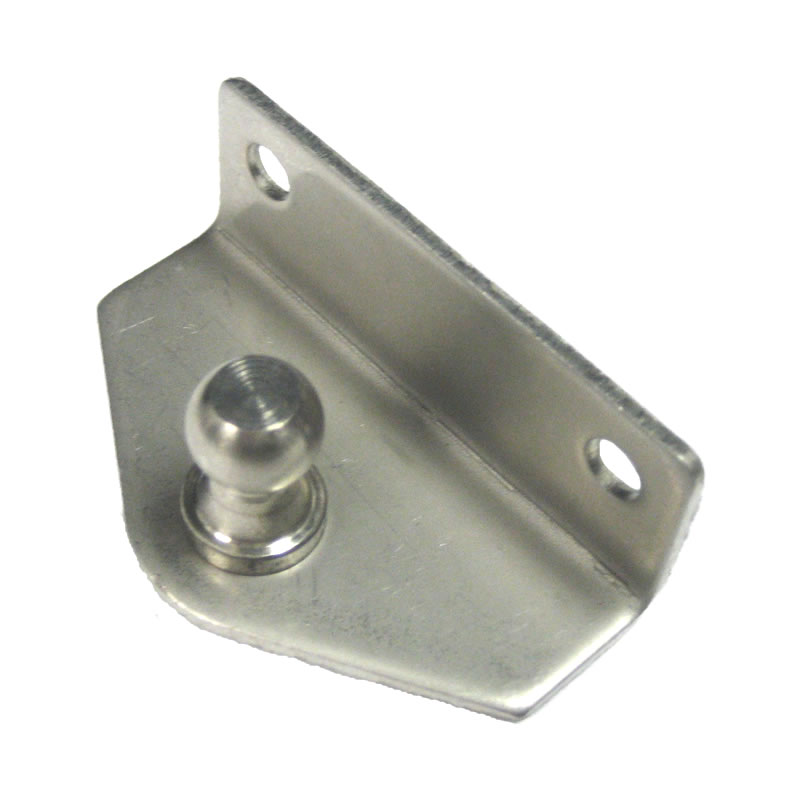

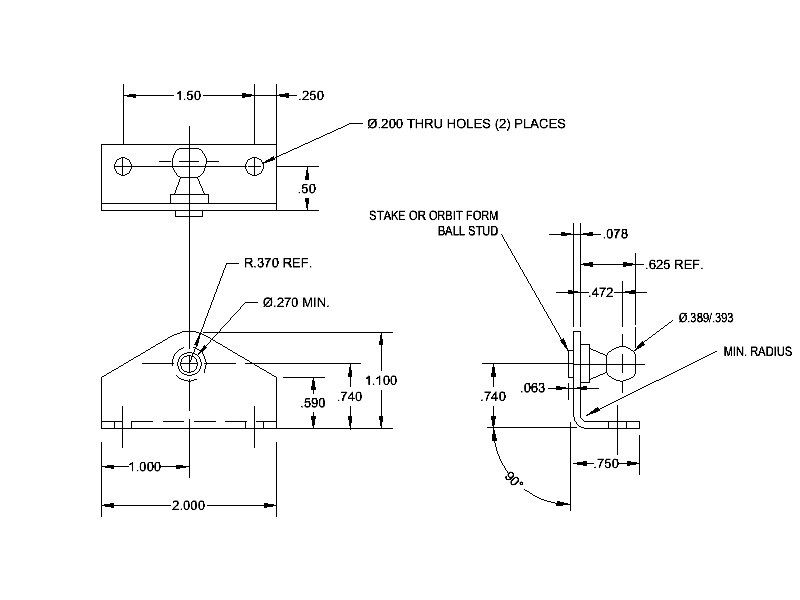

KB-AR-074-Z
Steel Zinc Plate - RoHS Compliant
KB-AR-074-P
Steel Black Gloss Powder Coat Finish
KB-AR-074-S
304 Stainless Steel - 500 Hour Salt Spray
Schematics (Click to enlarge)

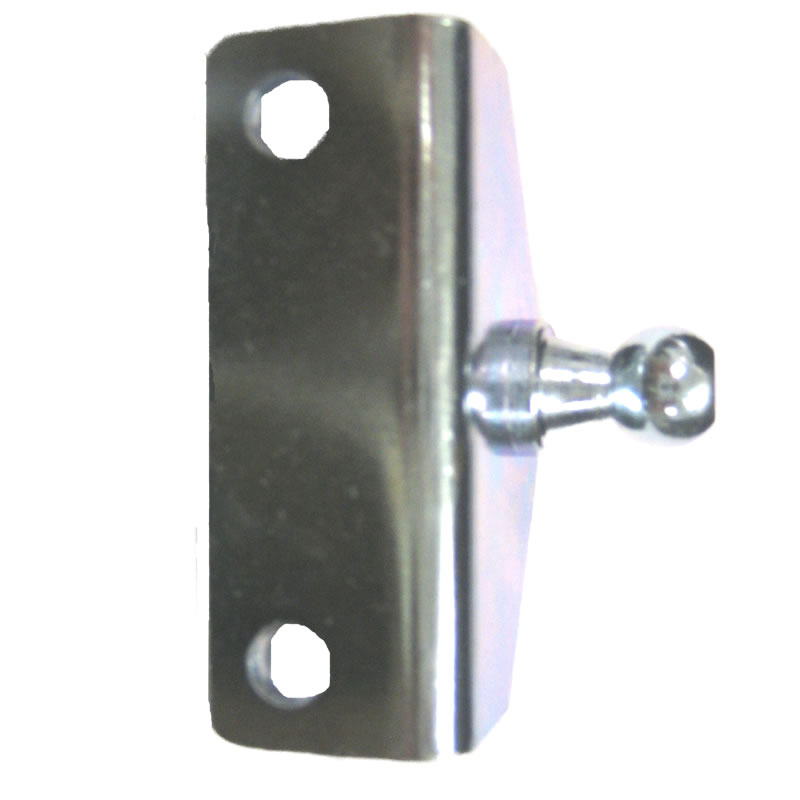

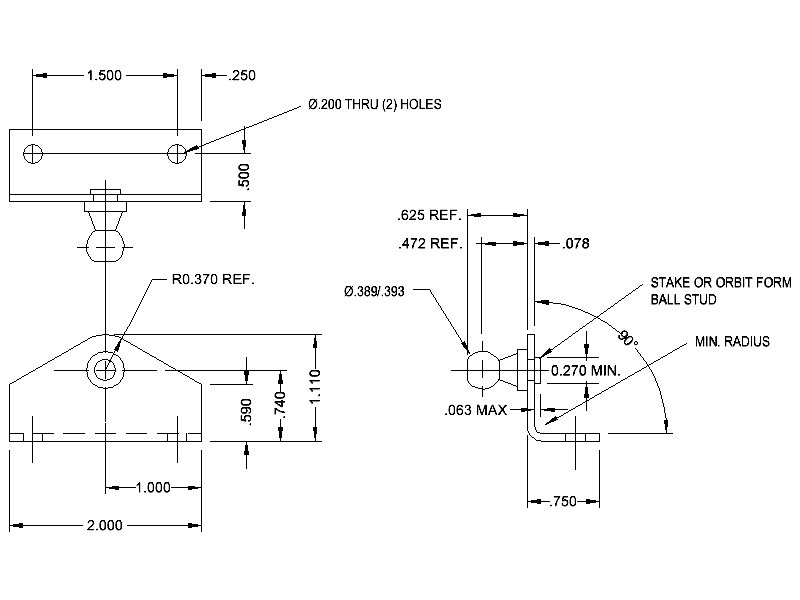

KB-AS-074-Z
Steel Zinc Plate - RoHS Compliant
KB-AS-074-P
Steel Black Gloss Powder Coat
KB-AS-074-S
304 Stainless Steel - 500 Hour Salt Spray
Schematics (Click to enlarge)

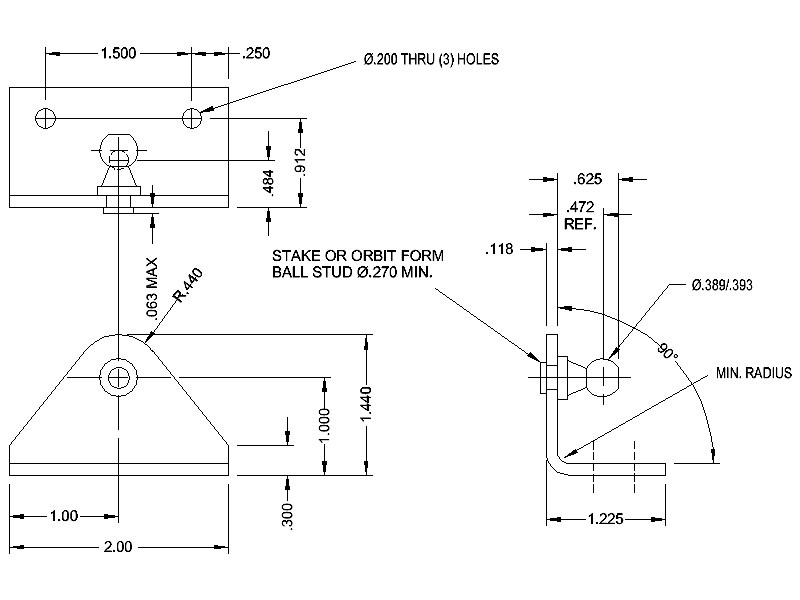

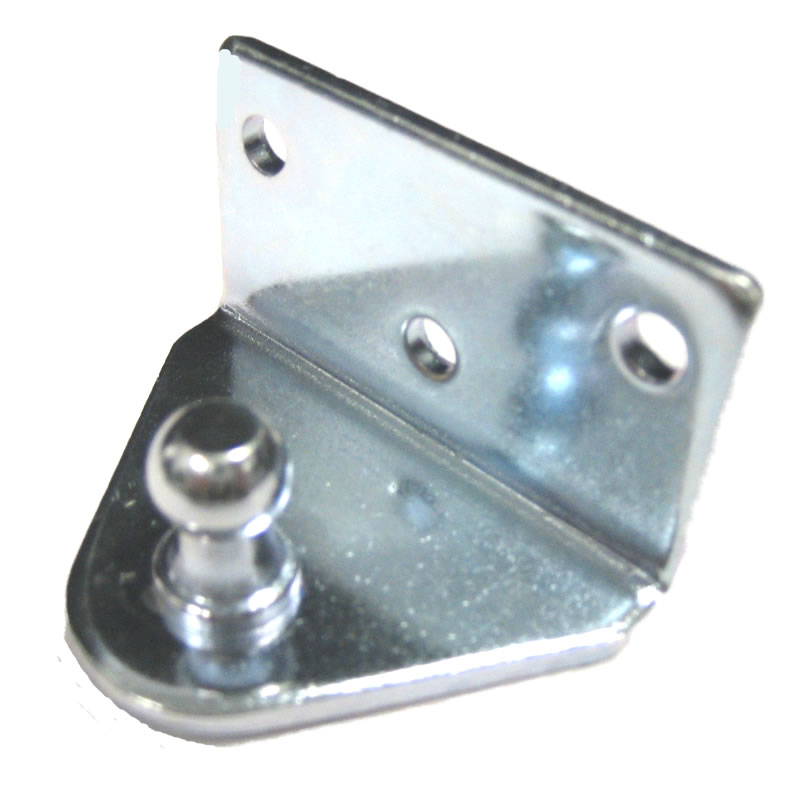

KB-AR-100-Z
Steel Zinc Plate - RoHS Compliant
KB-AR-100-P
Steel Black Gloss Powder Coat
KB-AR-100-S
304 Stainless Steel - 500 Hour Salt Spray
Schematics (Click to enlarge)

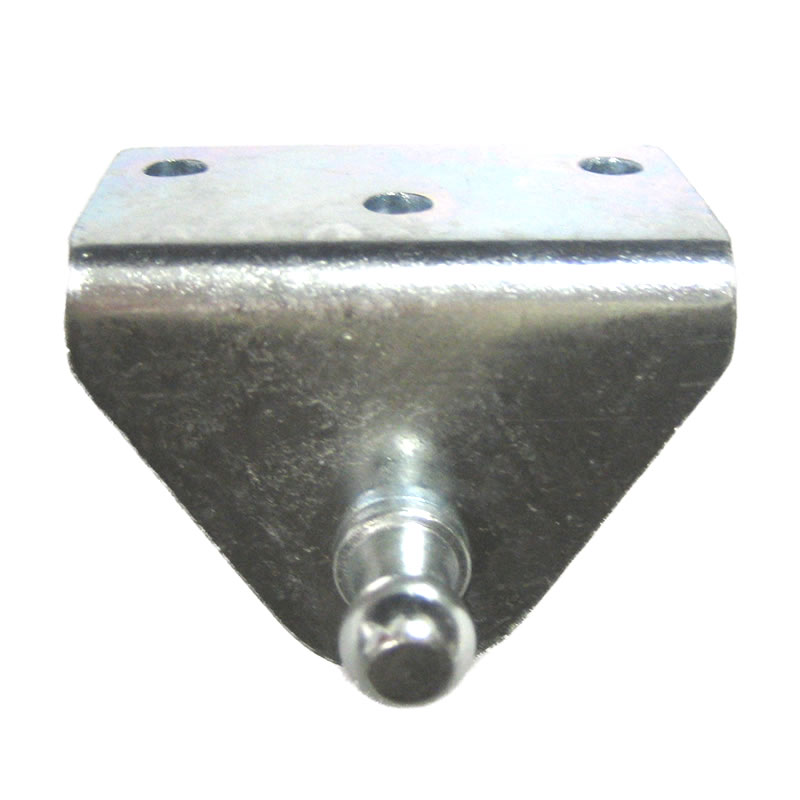

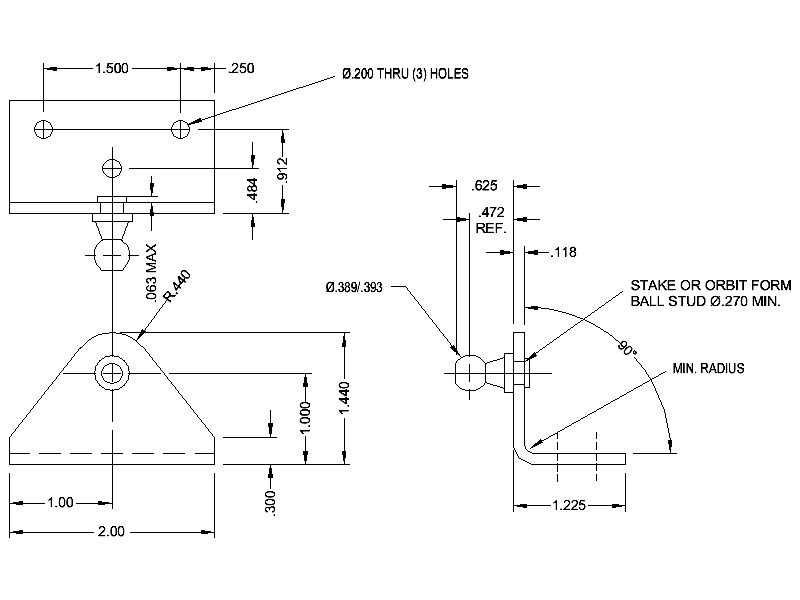

KB-AS-100-Z
Steel Zinc Plate - RoHS Compliant
KB-AS-100-P
Steel Black Gloss Powder Coat Finish
KB-AS-100-S
304 Stainless Steel - 500 Hour Salt Spray
Schematics (Click to enlarge)

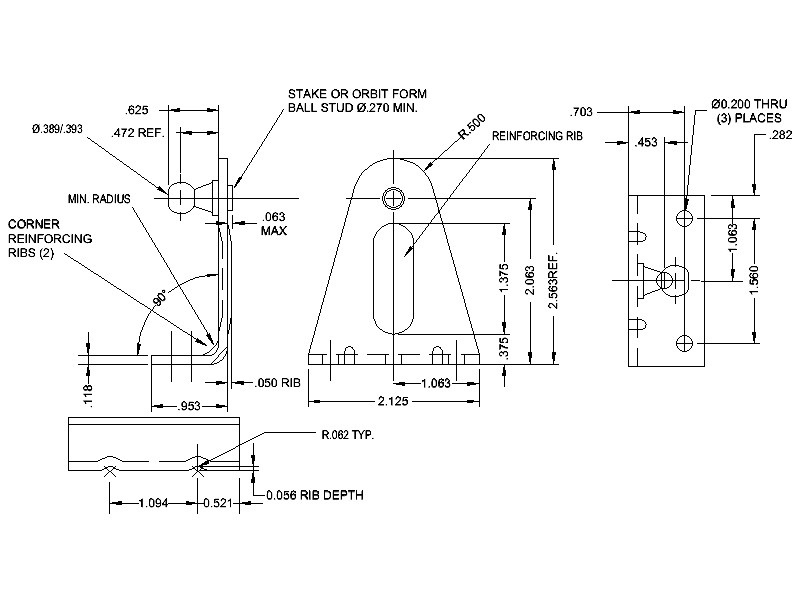

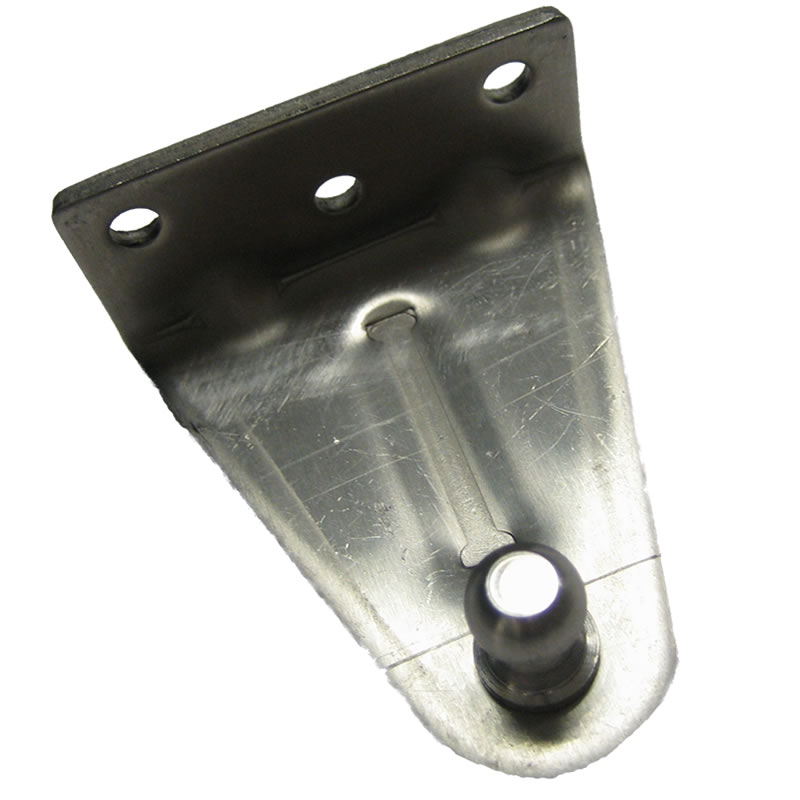

KB-AR-206-Z
Steel Zinc Plate - RoHS Compliant
KB-AR-206-P
Steel Black Gloss Powder Coat Finish
KB-AR-206-S
304 Stainless Steel - 500 Hour Salt Spray
Schematics (Click to enlarge)

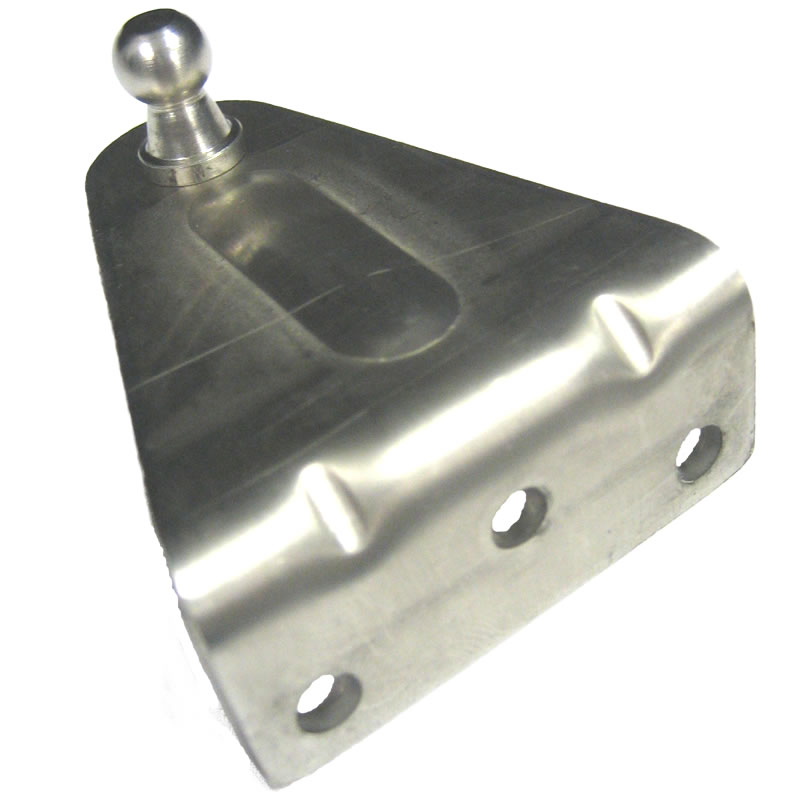

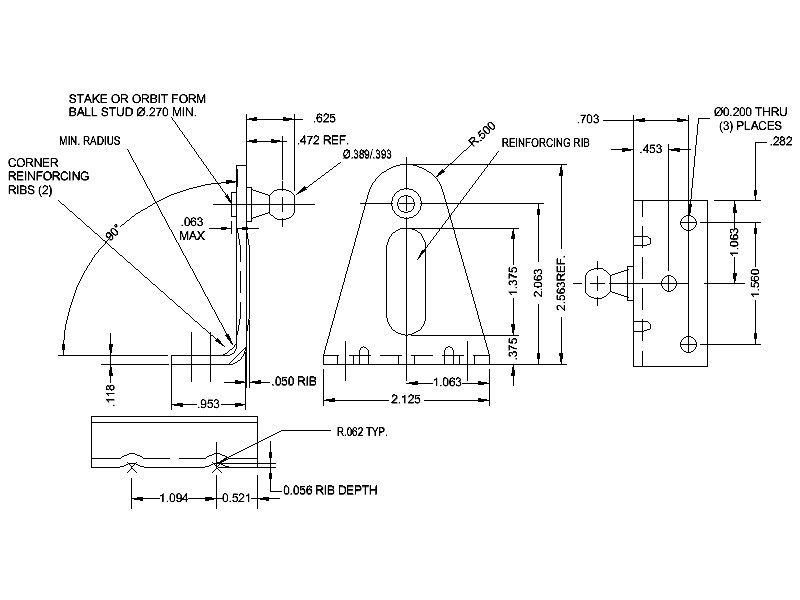

KB-AS-206-Z
Steel Zinc Plate - RoHS Compliant
KB-AS-206-P
Steel Black Gloss Powder Coat Finish
KB-AS-206-S
304 Stainless Steel - 500 Hour Salt Spray
Schematics (Click to enlarge)

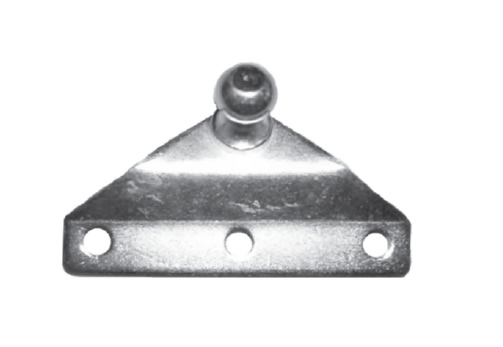

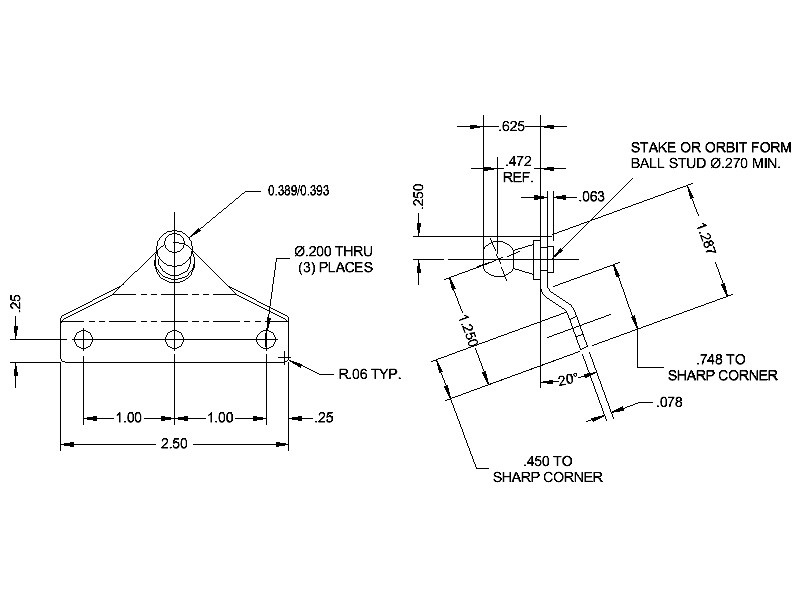

KB-OF-125-Z
Steel Zinc Plate - RoHS Compliant
KB-OF-125-P
Steel Black Gloss Powder Coat Finish
KB-OF-125-S
304 Stainless Steel - 500 Hour Salt Spray
Schematics (Click to enlarge)

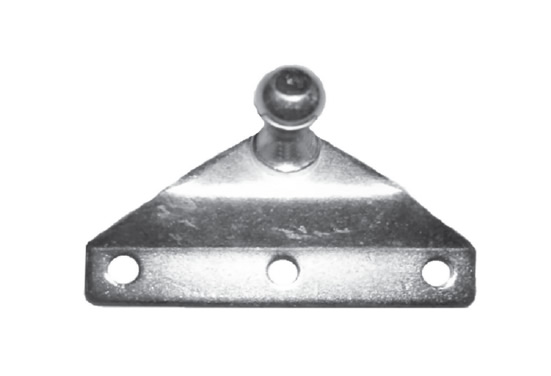

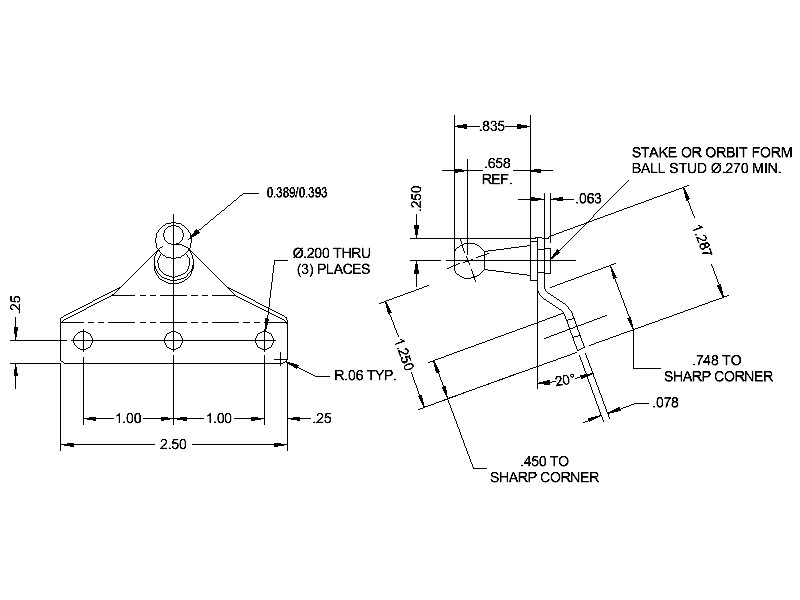

KB-OFL-125-Z
Steel Zinc Plate - RoHS Compliant
KB-OFL-125-P
Steel Black Gloss Powder Coat Finish
KB-OFL-125-S
304 Stainless Steel - 500 Hour Salt Spray
Schematics (Click to enlarge)

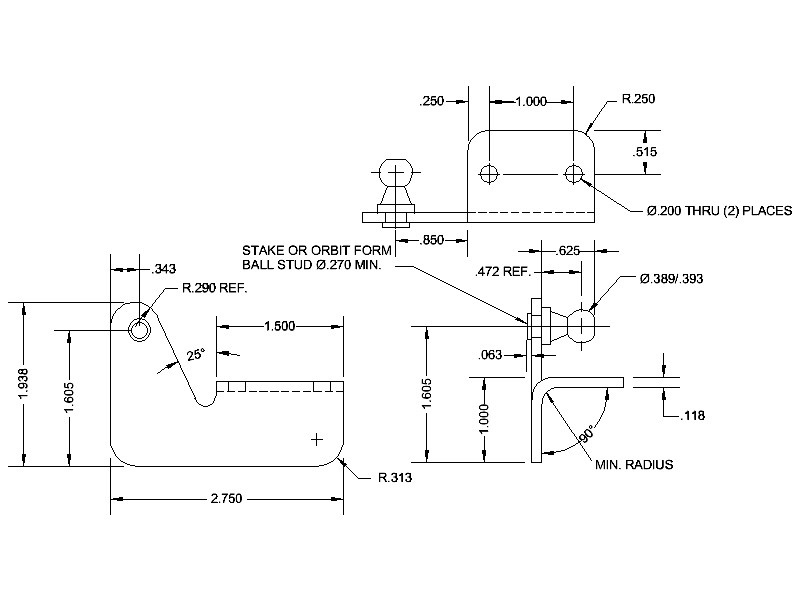

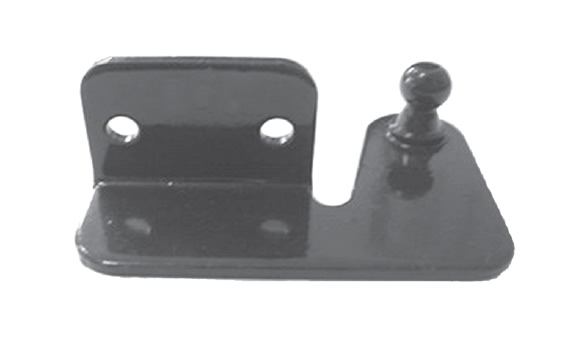

KB-AFR-1605-Z
Steel Zinc Plate - RoHS Compliant
KB-AFR-1605-P
Steel Black Gloss Powder Coat Finish
KB-AFR-1605-S
304 Stainless Steel - 500 Hour Salt Spray
Schematics (Click to enlarge)

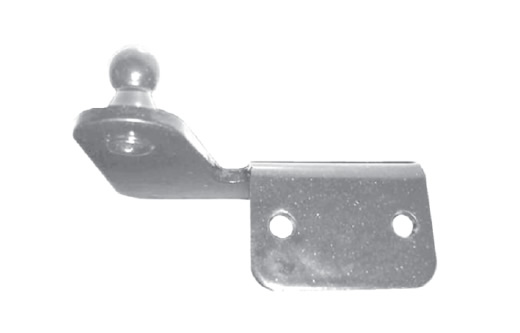

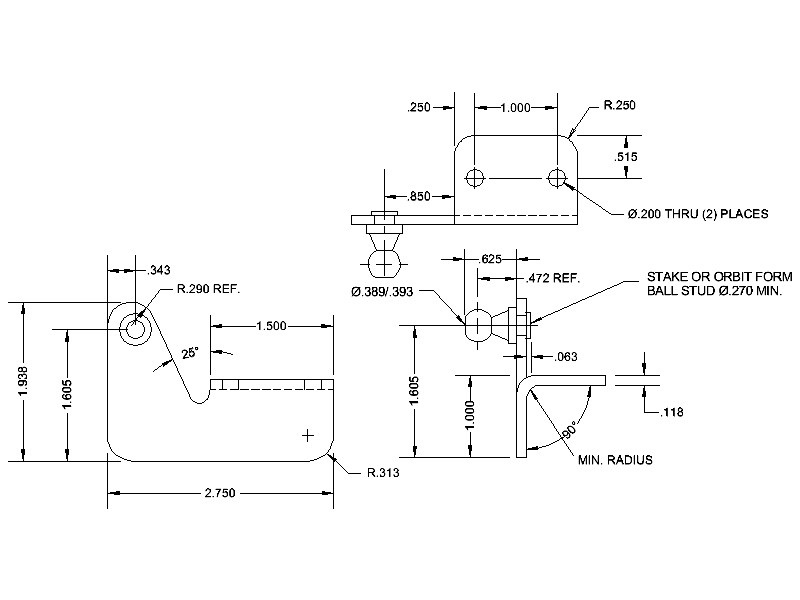

KB-AFS-1605-Z
Steel Zinc Plate - RoHS Compliant
KB-AFS-1605-P
Steel Black Gloss Powder Coat Finish
KB-AFS-1605-S
304 Stainless Steel - 500 Hour Salt Spray
Schematics (Click to enlarge)

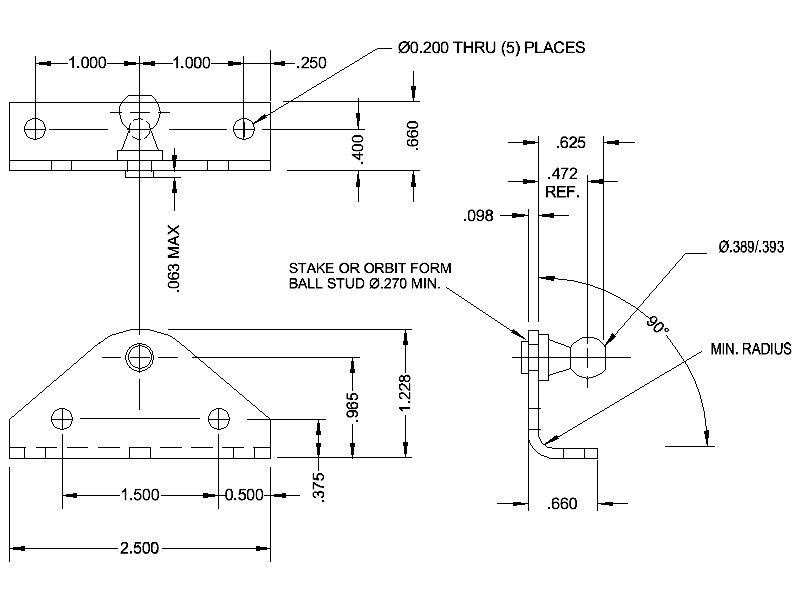

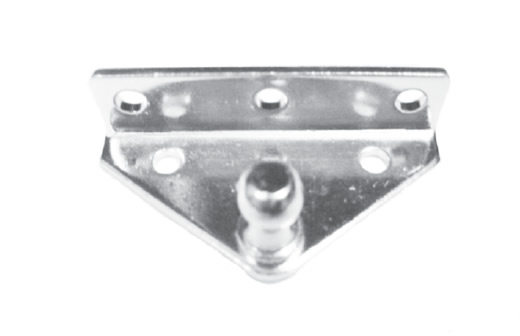

KB-AR-965-Z
Steel Zinc Plate - RoHS Compliant
KB-AR-965-P
Steel Black Gloss Powder Coat Finish
KB-AR-965-S
304 Stainless Steel - 500 Hour Salt Spray
Schematics (Click to enlarge)

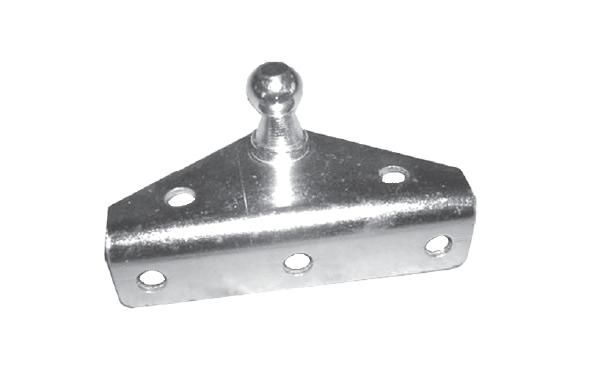

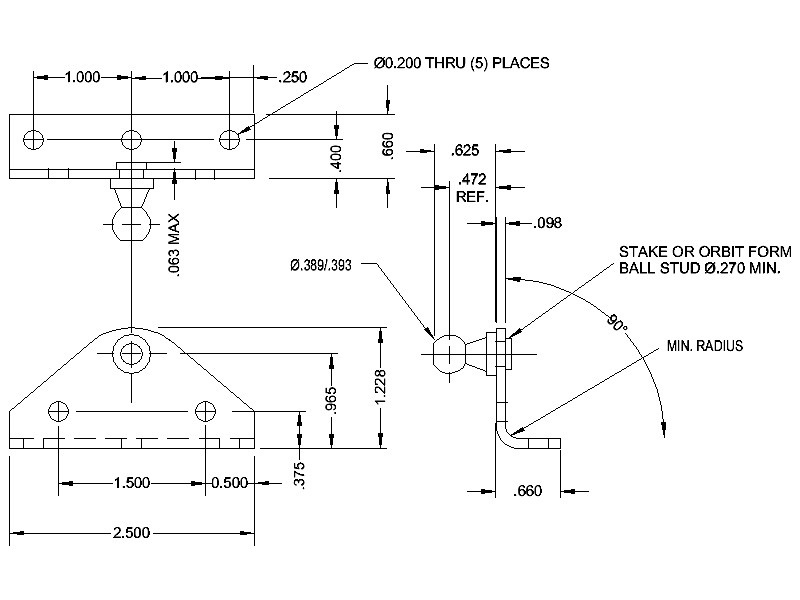

KB-AS-965-Z
Steel Zinc Plate - RoHS Compliant
KB-AS-965-P
Steel Black Gloss Powder Coat Finish
KB-AS-965-S
304 Stainless Steel - 500 Hour Salt Spray
Schematics (Click to enlarge)

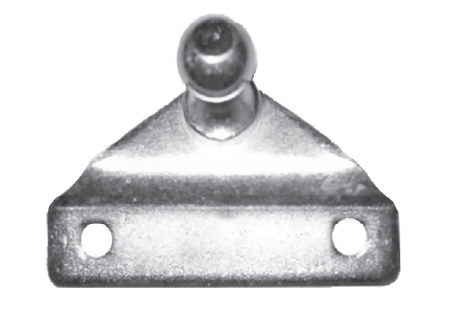

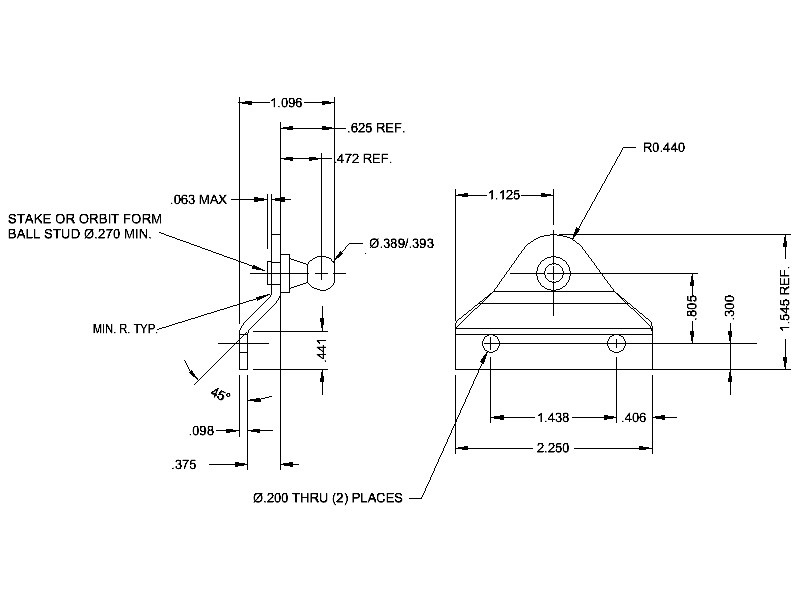

KB-OF-111-Z
Steel Zinc Plate - RoHS Compliant
KB-OF-111-P
Steel Black Gloss Powder Coat Finish
KB-OF-111-S
304 Stainless Steel - 500 Hour Salt Spray
Schematics (Click to enlarge)

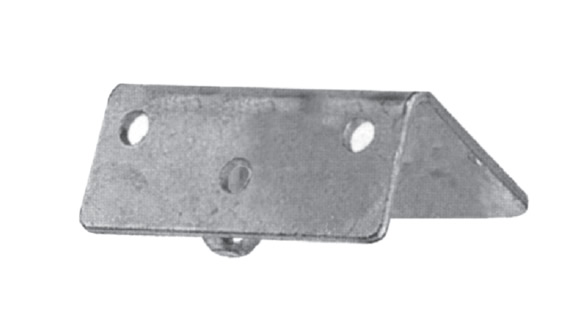

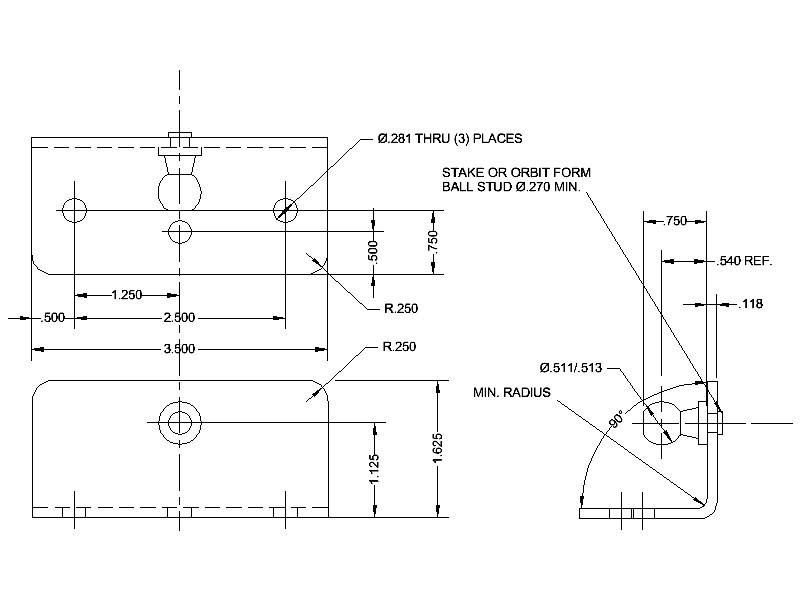

KB-AR-1125-Z
Steel Zinc Plate - RoHS Compliant
KB-AR-1125-P
Steel Black Gloss Powder Coat Finish
KB-AR-1125-S
304 Stainless Steel - 500 Hour Salt Spray
Schematics (Click to enlarge)

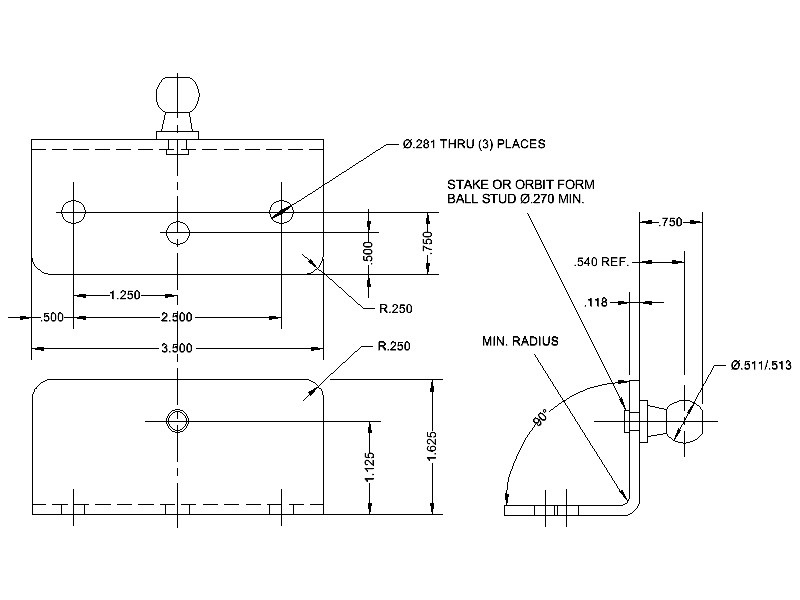

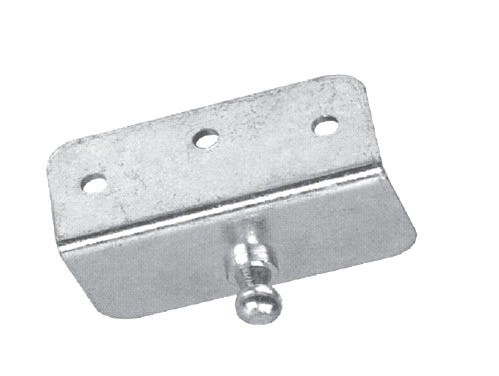

KB-AS-1125-Z
Steel Zinc Plate - RoHS Compliant
KB-AS-1125-P
Steel Black Gloss Powder Coat Finish
KB-AS-1125-S
304 Stainless Steel - 500 Hour Salt Spray

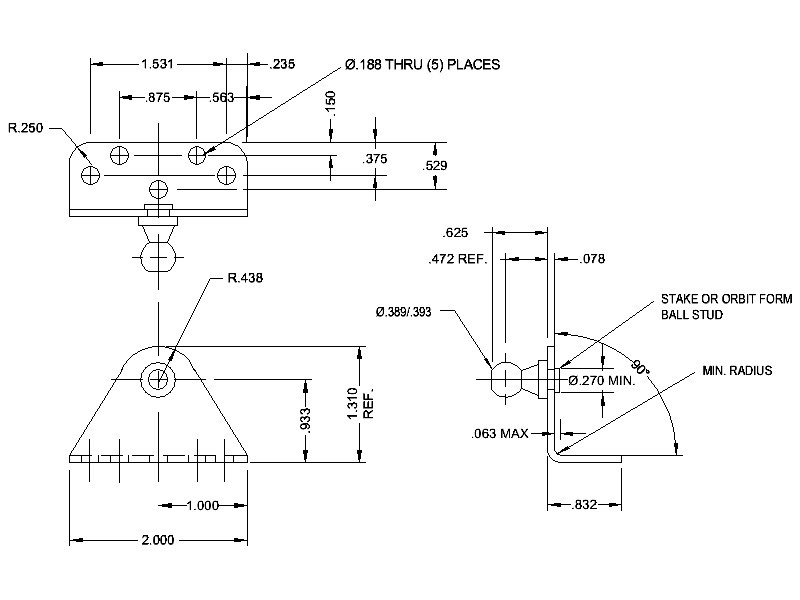

Schematics (Click to enlarge)

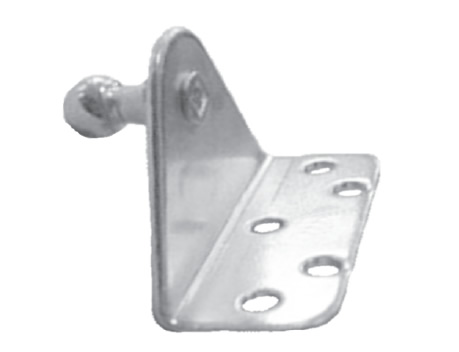

KB-AS-093-Z
Steel Zinc Plate - RoHS Compliant
KB-AS-093-P
Steel Black Gloss Powder Coat Finish
KB-AS-093-S
304 Stainless Steel - 500 Hour Salt Spray
Schematics (Click to enlarge)

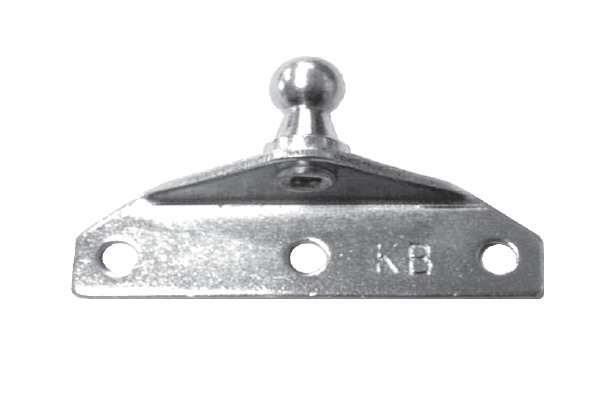

KB-AS-500-Z
Steel Zinc Plate - RoHS Compliant
KB-AS-500-P
Steel Black Gloss Powder Coat Finish
KB-AS-500-S
304 Stainless Steel - 500 Hour Salt Spray
Schematics (Click to enlarge)

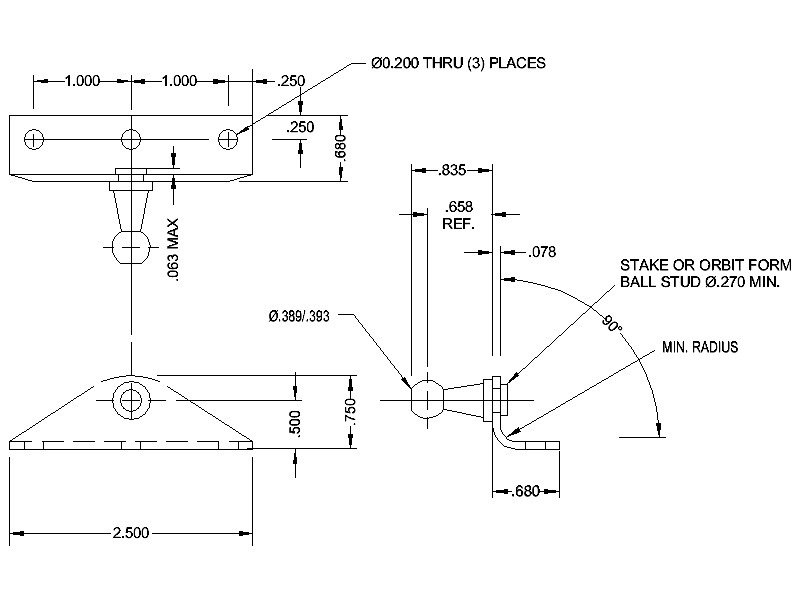

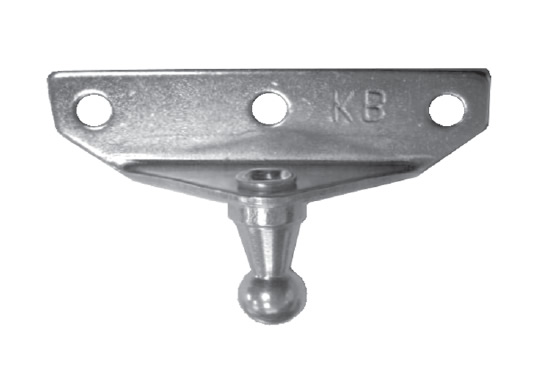

KB-ASL-500-Z
Steel Zinc Plate - RoHS Compliant
KB-ASL-500-P
Steel Black Gloss Powder Coat Finish
KB-ASL-500-S
304 Stainless Steel - 500 Hour Salt Spray
Schematics (Click to enlarge)

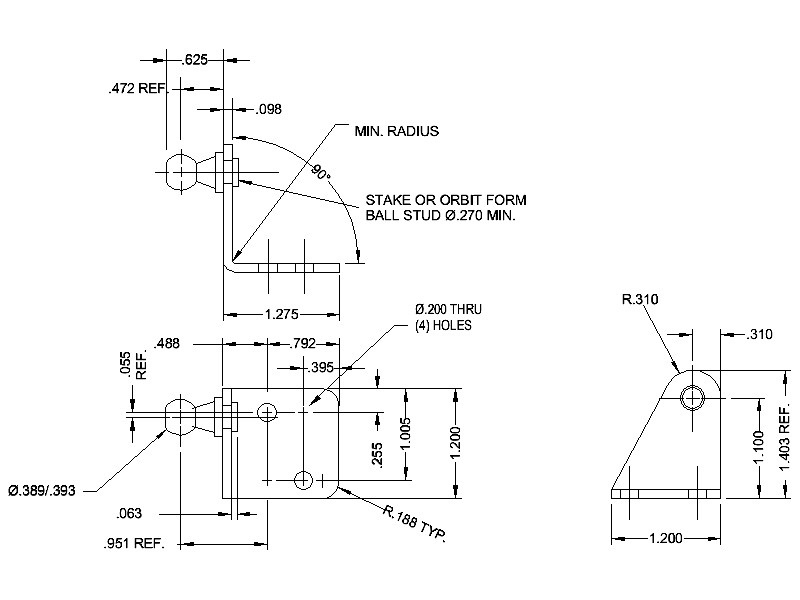

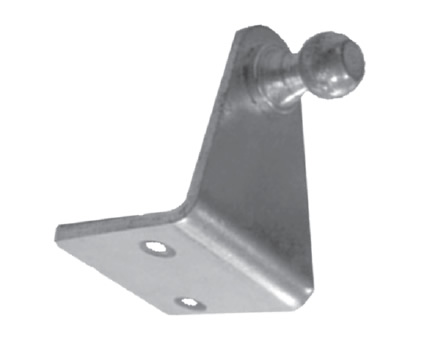

KB-AS-110-Z
Steel Zinc Plate - RoHS Compliant
KB-AS-110-P
Steel Black Gloss Powder Coat Finish
KB-AS-110-S
304 Stainless Steel - 500 Hour Salt Spray
Schematics (Click to enlarge)

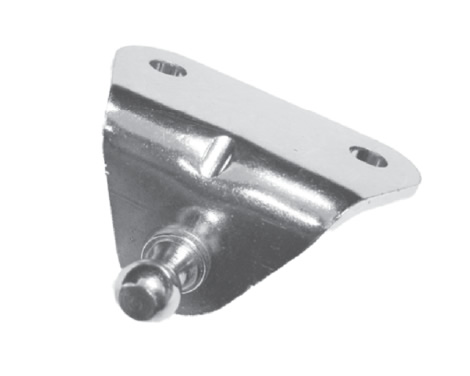

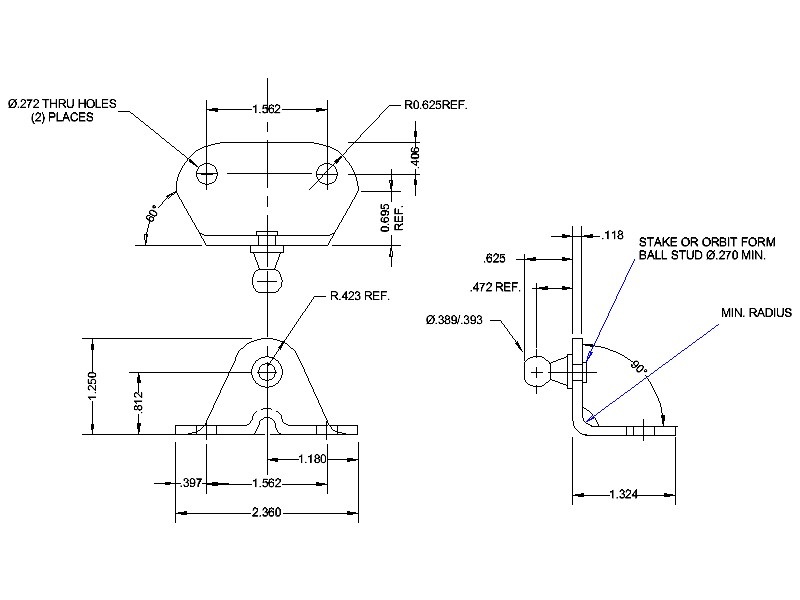

KB-AS-812-Z
Steel Zinc Plate - RoHS Compliant
KB-AS-812-P
Steel Black Gloss Powder Coat Finish
KB-AS-812-S
304 Stainless Steel - 500 Hour Salt Spray
Schematics (Click to enlarge)

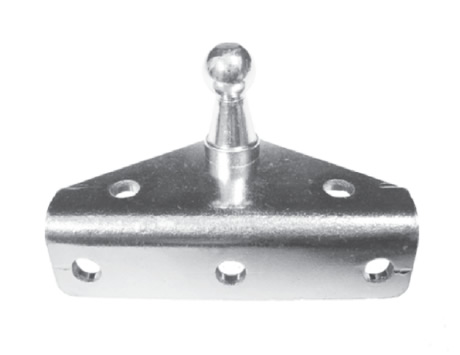

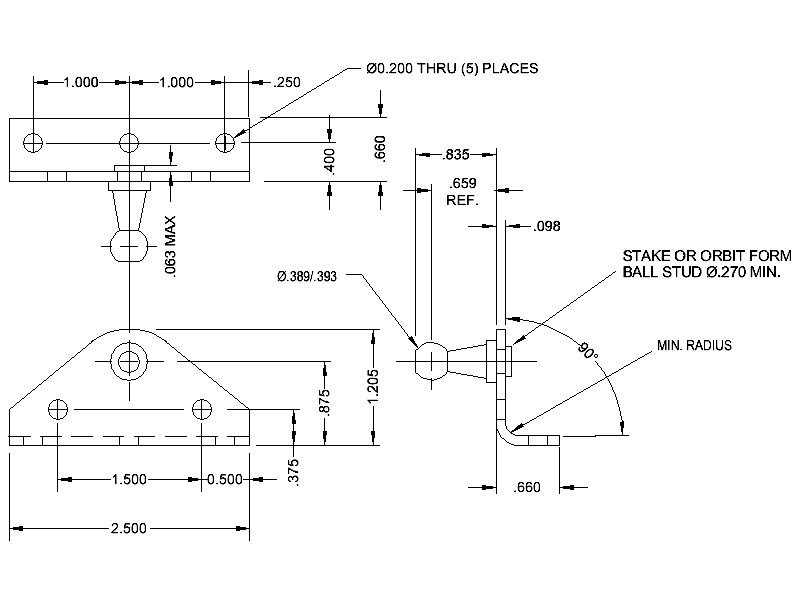

KB-AS-875-Z
Steel Zinc Plate - RoHS Compliant
KB-AS-875-P
Steel Black Gloss Powder Coat Finish
KB-AS-875-S
304 Stainless Steel - 500 Hour Salt Spray
Schematics (Click to enlarge)

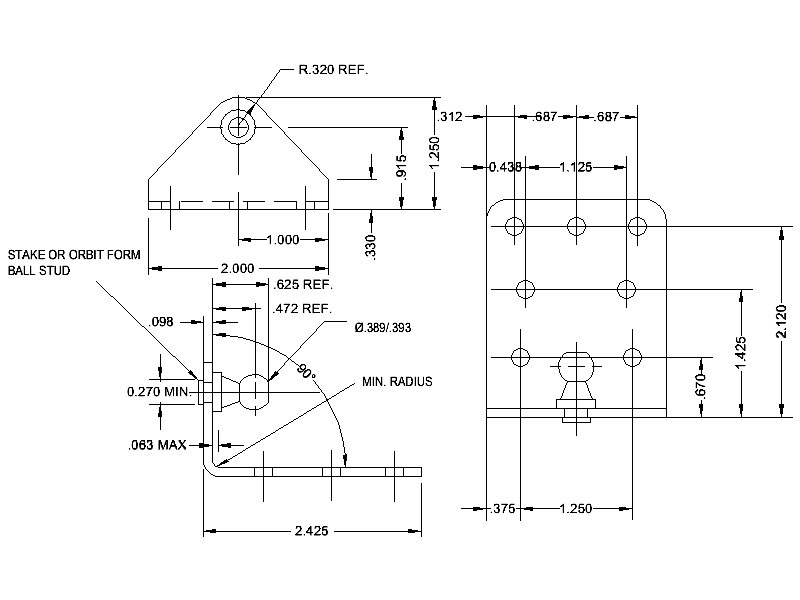

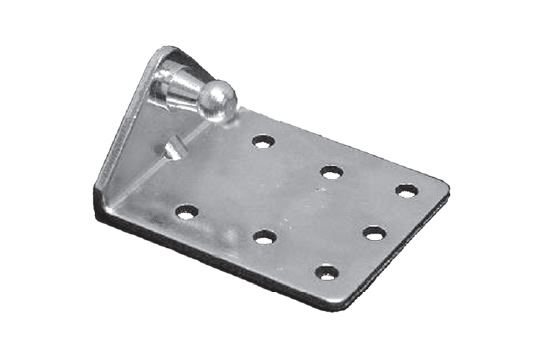

KB-AR-915-Z
Steel Zinc Plate - RoHS Compliant
KB-AR-915-P
Steel Black Gloss Powder Coat Finish
KB-AR-915-S
304 Stainless Steel - 500 Hour Salt Spray
Schematics (Click to enlarge)

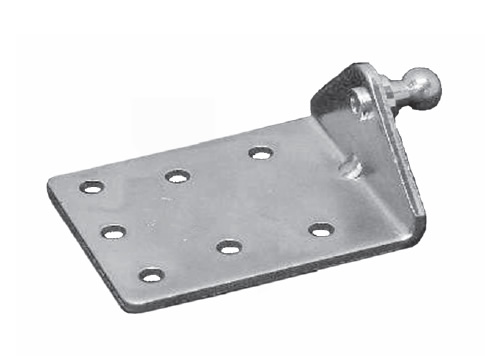

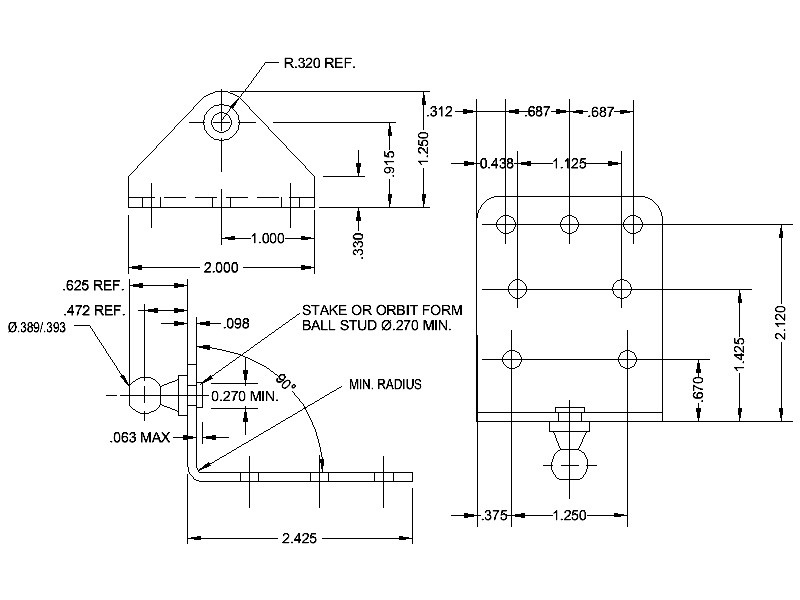

KB-AS-915-Z
Steel Zinc Plate - RoHS Compliant
KB-AS-915-P
Steel Black Gloss Powder Coat Finish
KB-AS-915-S
304 Stainless Steel - 500 Hour Salt Spray
Schematics (Click to enlarge)

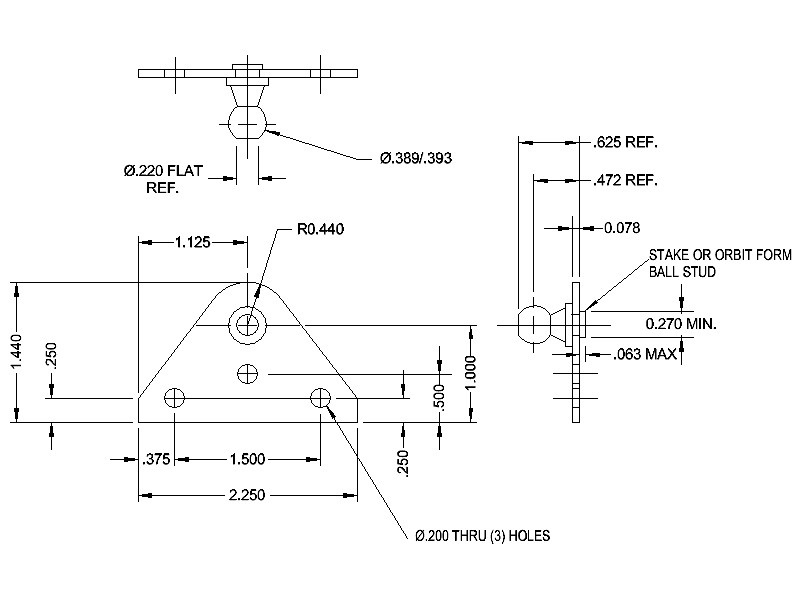

KB-FS-100-Z
Steel Zinc Plate - RoHS Compliant
KB-FS-100-P
Steel Black Gloss Powder Coat Finish
KB-FS-100-S
304 Stainless Steel - 500 Hour Salt Spray
Schematics (Click to enlarge)

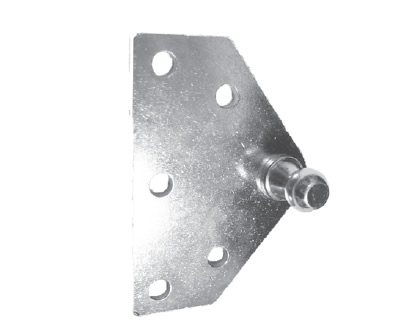

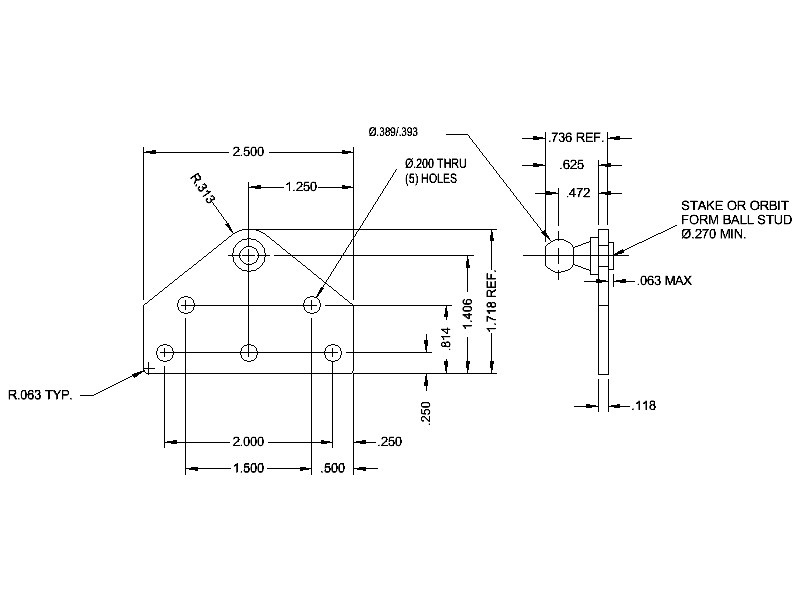

KB-FS-141-Z
Steel Zinc Plate - RoHS Compliant
KB-FS-141-P
Steel Black Gloss Powder Coat Finish
KB-FS-141-S
304 Stainless Steel - 500 Hour Salt Spray
Schematics (Click to enlarge)

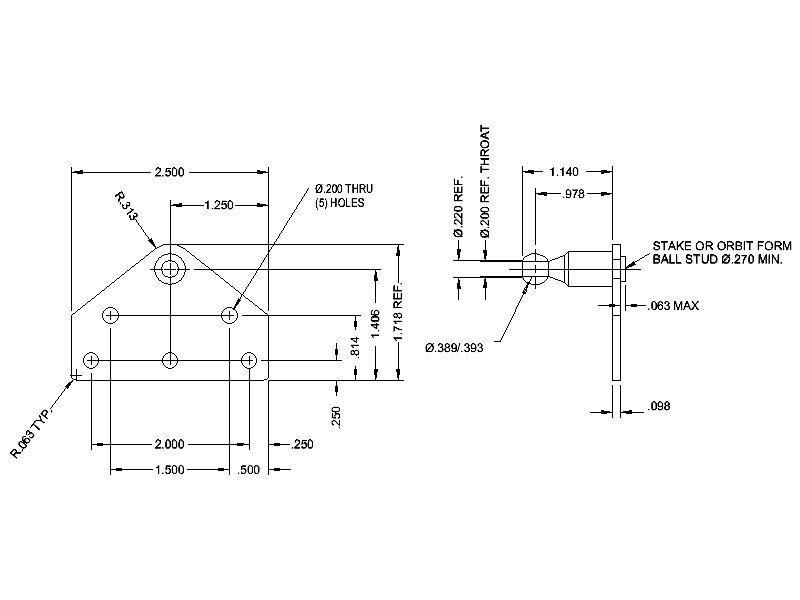

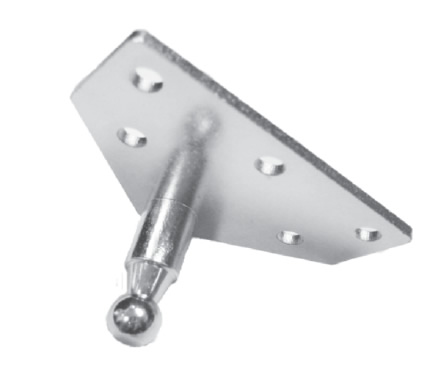

KB-FXL-141-Z
Steel Zinc Plate - RoHS Compliant
KB-FXL-141-P
Steel Black Gloss Powder Coat Finish
KB-FXL-141-S
304 Stainless Steel - 500 Hour Salt Spray
Schematics (Click to enlarge)

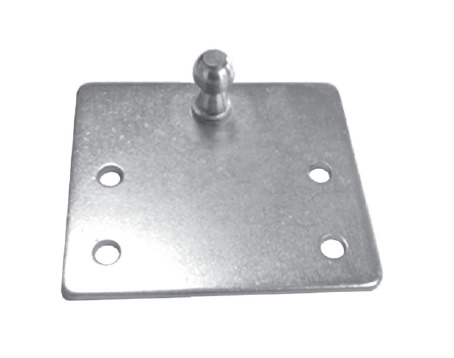

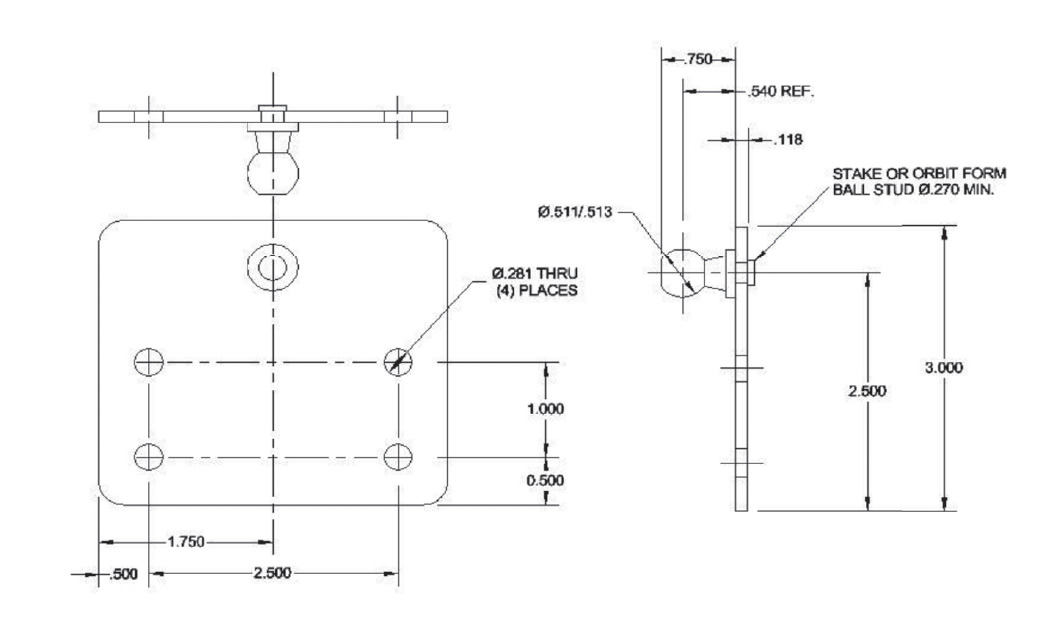

KB-FS-2500-Z
Steel Zinc Plate - RoHS Compliant
KB-FS-2500-S
304 Stainless Steel - 500 Hour Salt Spray
Ball Studs
Schematics (Click to enlarge)

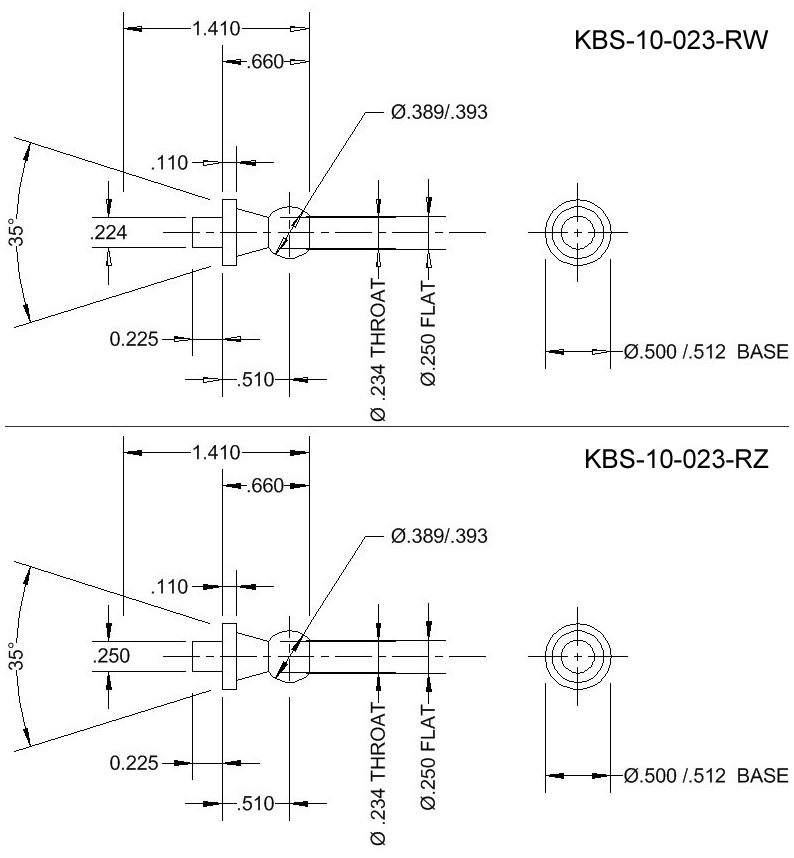

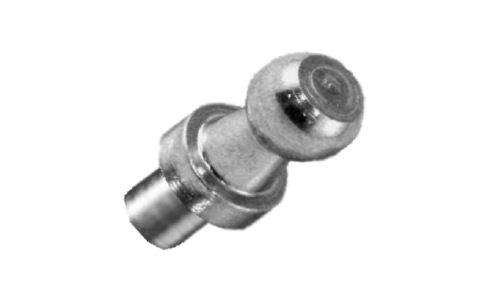

KBS-10-023-RZ
Steel Zinc Plate - RoHS Compliant
KBS-10-023-RW
Steel - No Finish
10mm Ball Stud
Solid Rivetable Post
Schematics (Click to enlarge)

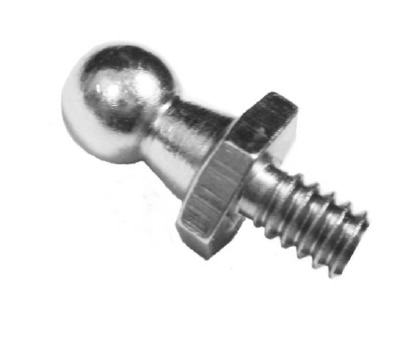

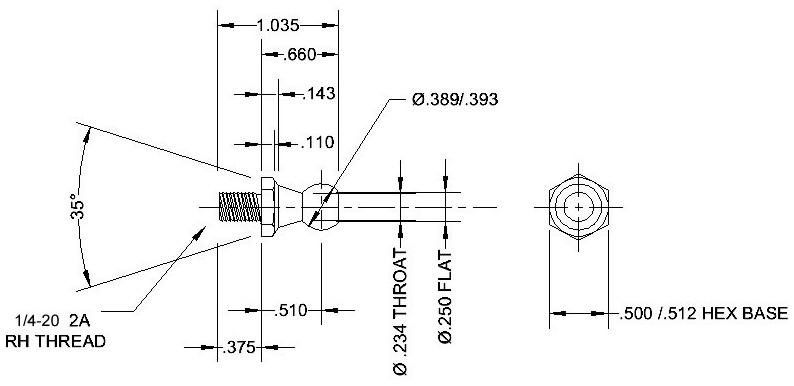

KBS-10-038-SZ
Steel Zinc Plate - RoHS Compliant
KBS-10-038-SS
304 Stainless Steel - 500 Hour Salt Spray
10mm Ball Stud
1/4-20 2A Thread
Schematics (Click to enlarge)

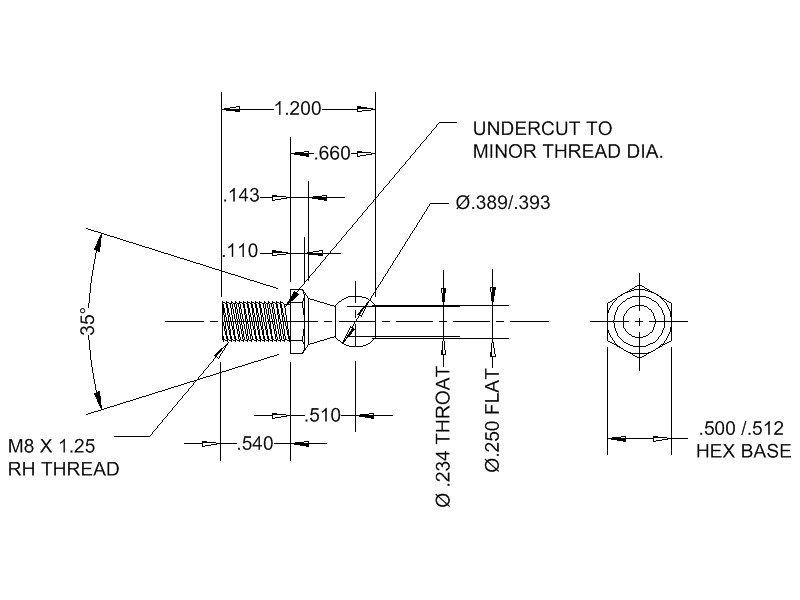

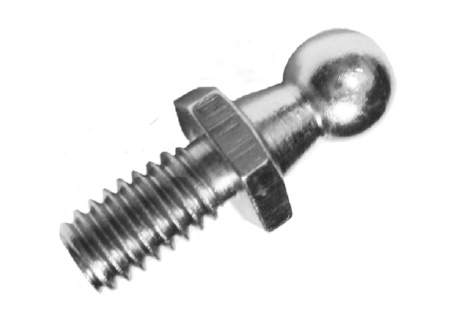

KBS-10-054-MZ
Steel Zinc Plate - RoHS Compliant
KBS-10-054-MS
304 Stainless Steel - 500 Hour Salt Spray
10mm Ball Stud
M8 x 1.25 Metric Thread
Schematics (Click to enlarge)

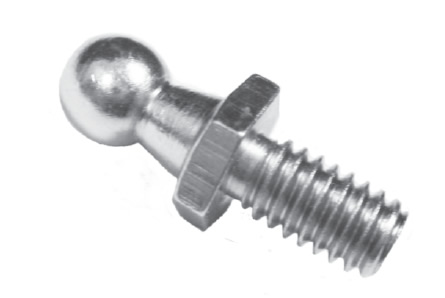

KBS-10-054-SZ
Steel Zinc Plate - RoHS Compliant
KBS-10-054-SS
304 Stainless Steel - 500 Hour Salt Spray
10mm Ball Stud
5/16-18 2A Thread
Schematics (Click to enlarge)

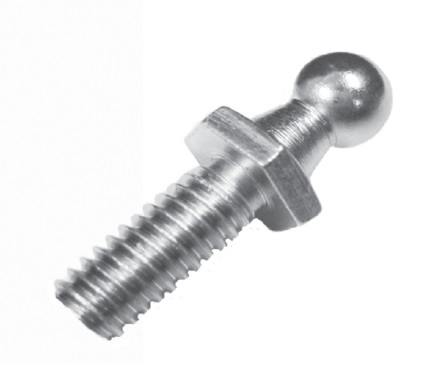

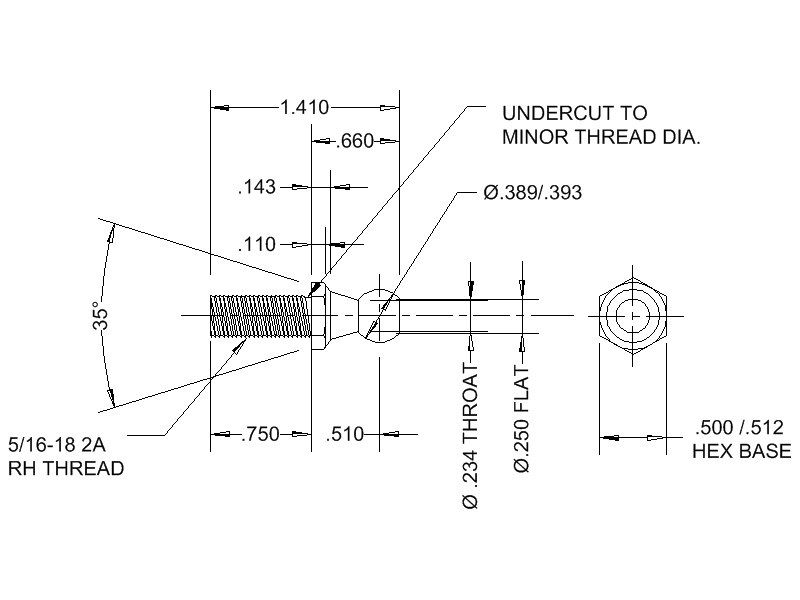

KBS-10-075-SZ
Steel Zinc Plate - RoHS Compliant
KBS-10-075-SS
304 Stainless Steel - 500 Hour Salt Spray
10mm Ball Stud
5/16-18 2A Thread
Schematics (Click to enlarge)

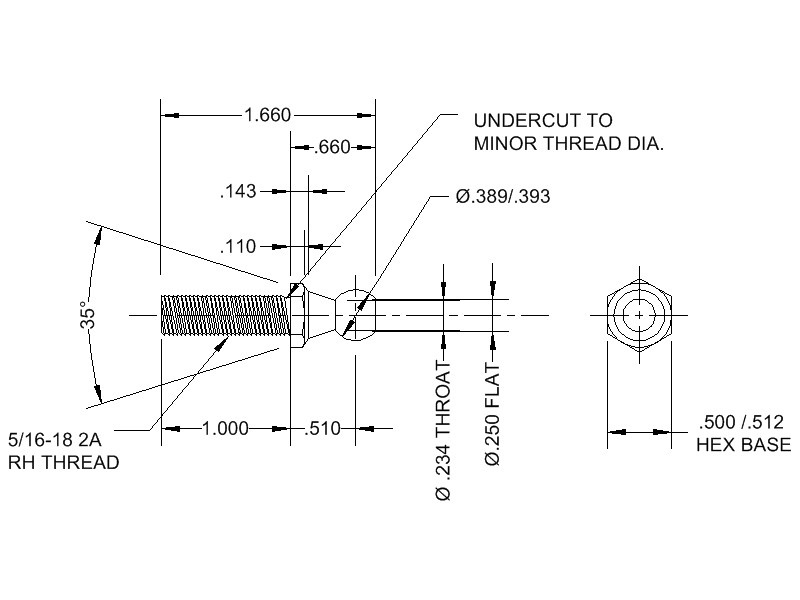

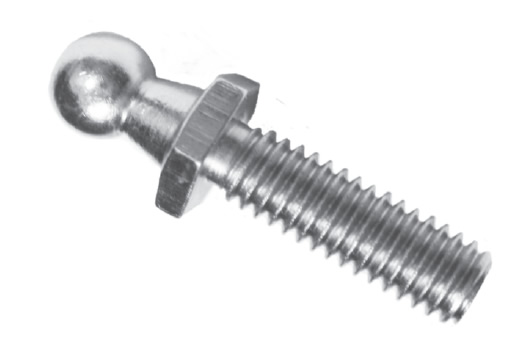

KBS-10-100-SZ
Steel Zinc Plate - RoHS Compliant
KBS-10-100-SS
304 Stainless Steel - 500 Hour Salt Spray
10mm Ball Stud
5/16-18 2A Thread
Schematics (Click to enlarge)

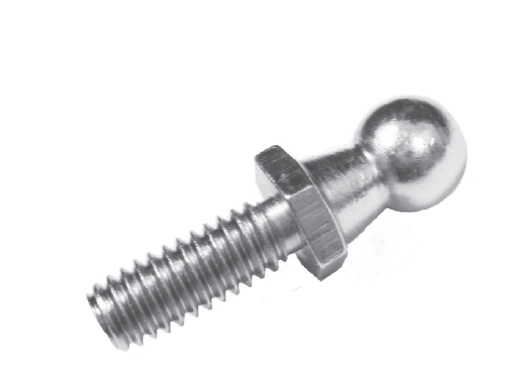

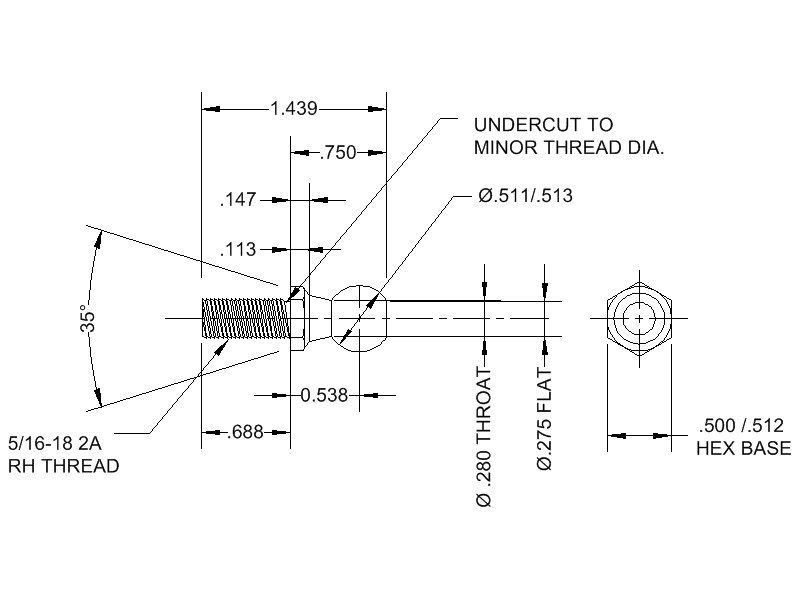

KBS-13-069-SZ
Steel Zinc Plate - RoHS Compliant
KBS-13-069-SS
304 Stainless Steel - 500 Hour Salt Spray
13mm Ball Stud
5/16-18 2A Thread
Schematics (Click to enlarge)

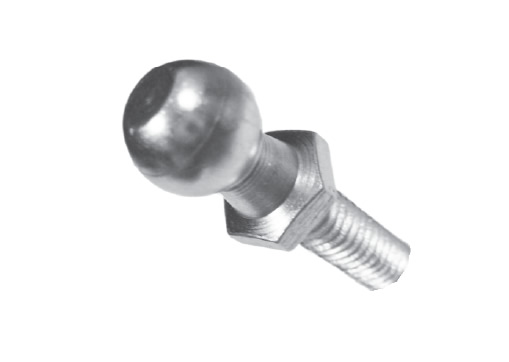

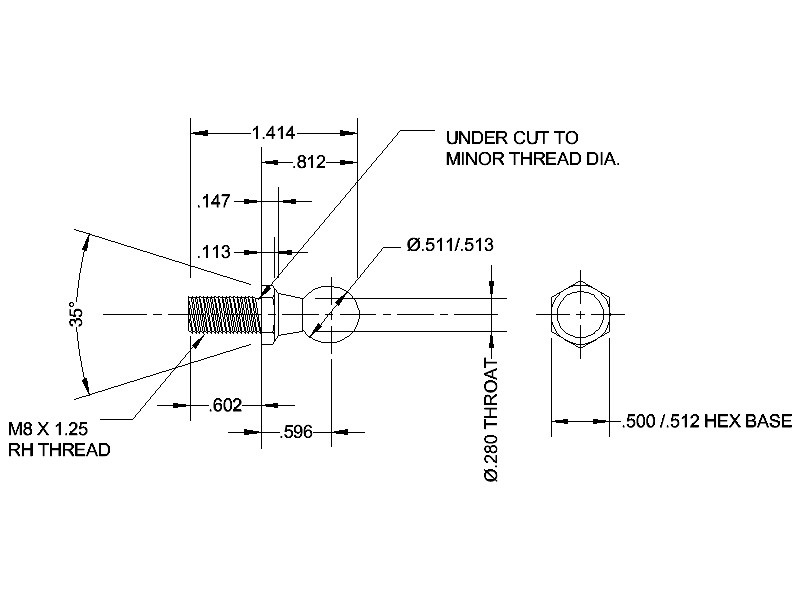

KBS-13-060-MZ
Steel Zinc Plate - RoHS Compliant
KBS-13-060-MS
304 Stainless Steel - 500 Hour Salt Spray
13mm Ball Stud
M8 X 1.25 Thread
Schematics (Click to enlarge)

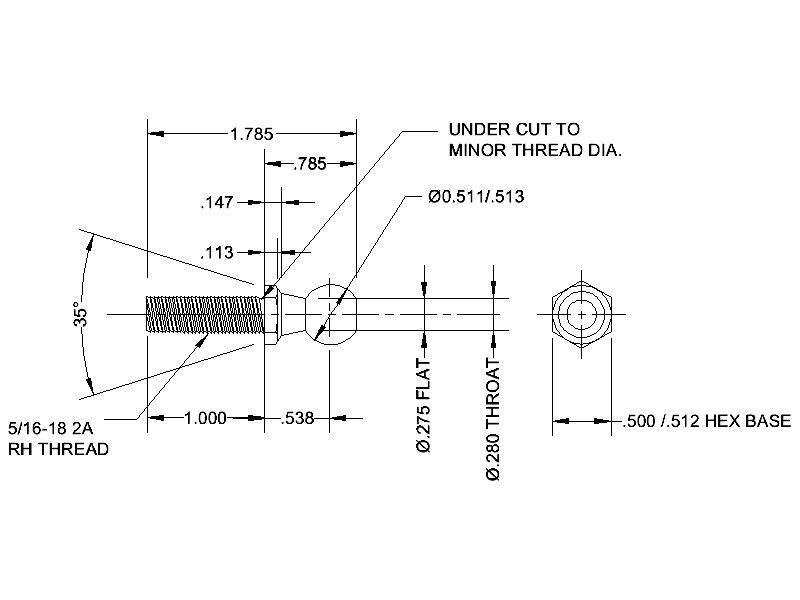

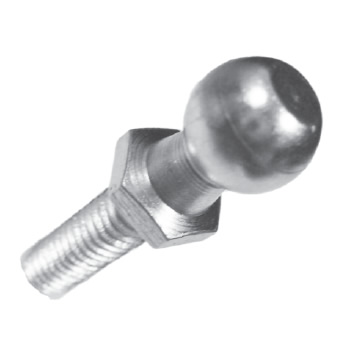

KBS-13-100-SZ
Steel Zinc Plate - RoHS Compliant
KBS-13-100-SS
304 Stainless Steel - 500 Hour Salt Spray
13mm Ball Stud
5/16-18 2A Thread
